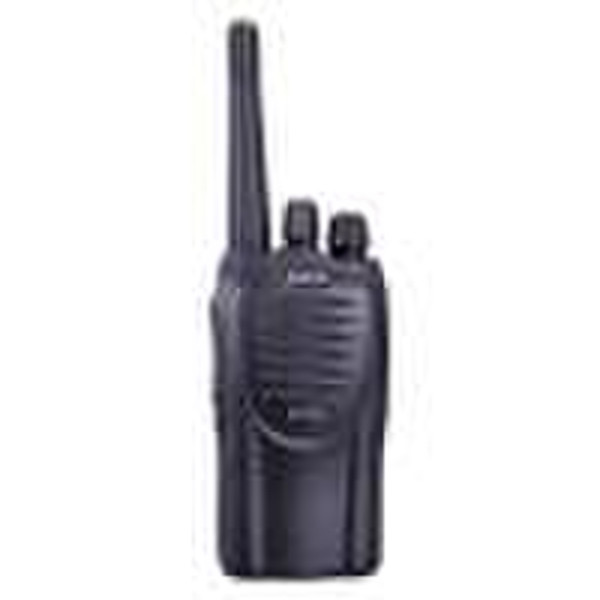

Two-Way Radio walkie talkie interphone BF-5168

Two-Way Radio walkie talkie interphone BF-5168

Quanzhou, China
Production capacity:
50000 Piece / Month
Quanzhou, China
Beginner
86-595-22769271
Ronnie Chen
Contact person

Basic Information

Features: 1) 16 semi-duplex channels 2) Transmitting output power 4-5W 3) Large-capacity Li-ion battery 4) Built-in CTCSS and DCS 5) English channel number pronounce 6) PC programming 7) Setup for squelch level 8) Low battery voltage alarm 9) Waterproof and fall-proofSpecifications: 1) Models: UHF 2) Frequency range: 350 - 370MHz, 400-430MHz, 430-470MHz 3) Channels: 16 4) Frequency band: 25KHz (wide band), 12.5KHz (narrowband) 5) Operation temperature: -20 - +60°C 6) Power supply: 7.5V DC (±20%) 7) Dimensions (L x W x H): 39 x 60 x 114mm 8) Weight: 227g (including battery pack) 9) Transmitter: a) Power output: 4 - 5W b) Frequency stability: ±5ppm c) Modulated mode: 16KF3E (broad), 8K50F3E (narrow) d) Spurious radiation: ≤-70dB e) FM noise: ≤-40dB f) FM distortion: ≤5% g) Max. frequency deviation: ≤±5KHz (W), ≤±2.5KHz (N) h) Channel expand: 20MHz 10) Receiver: a) Frequency stability: ;±5ppm b) Selectivity (12dB SINAD): better than 0.25V (W), better than 0.28V (N) c) Receiving FM bandwidth: ≥±7kHz (W), ≥±3.5kHz (N) d) Adjacent channel selectivity: better than 65dB e) Intermodulation anti-interference:better than 60dB f) Spurious wave anti-interference: better than 60dB g) Audio output: 500mW h) Channel expand: 20MHz

Delivery terms and packaging

Unfortunately the seller did not specify the terms of delivery. For more information, contact the seller.

Payment term

Letter of credit

Telegraphic transfer

MoneyGram

Western Union
